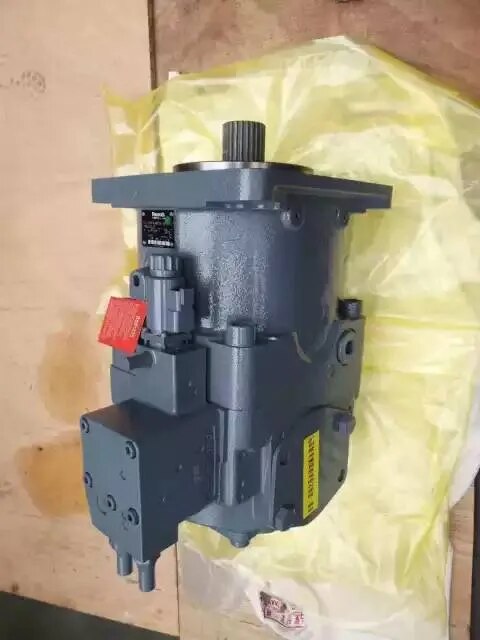

Rexroth A11VLO260DRS For Liebherr Mobile Crane

A4VG180 Liebherr Port Shipcrane LHM-500 REXROTH VARIABLE DISPLACEMENT PUMP R902129756

FEATURES

Integrated boost pump for boost and pilot oil supply

Flow direction changes smoothly when the swashplate is moved through the neutral position

High-pressure relief valves with integrated boost function

With adjustable pressure cut-off as standard

Boost-pressure relief valve

Through drive for mounting of further pumps up to same nominal size

Large variety of controls

Swashplate design

TECHNICAL DATA

Displacement                 : 180cm³

Nominal pressure          : 400 bar

Maximum pressure       : 450 bar

Maximum speed            : 2850 rpm at nnom  3450 at nmax

Inlet flow                          : 356 l/min

Torque                           : 796 Nm

A4VG180EP4DT1/32L-NZD02N001EH-S

Rexroth Axial Piston Fixed Pump A2FO23, A2FO28, A2FO32

Place of Origin:GermanyBrand Name:RexrothCertification:ISO9001Model Number:A2FO23/61L-PPB05 A2FO23/61R-PPB05 A2FO23/61R-PZB05-S A2FO23/61R-PZP05 A2FO28/61R-VAB05 A2FO28/61R-VPB05-S A2FO32/61L-VBB05 A2FO32/61R-PAB05-S A2FO32/61R-PBB06
