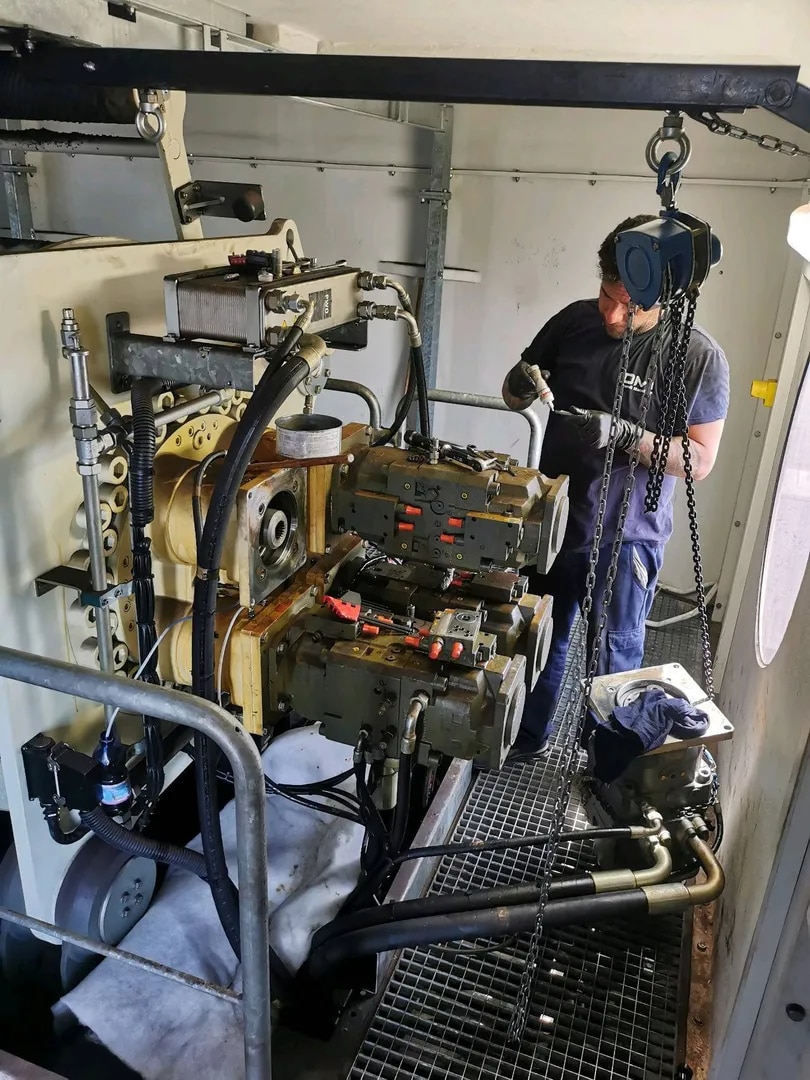

LIEBHERR HYDRAULIC MOTOR REPAIR

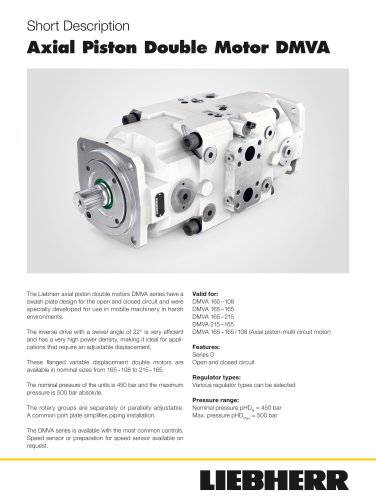

N N HYDRAULIC INDIA Delhi based company contact number (8929994786) a leading service provider, supplier, Distributor and repair service of Liebherr axial piston motors DMVA series have a

swash plate design for the open and closed circuit and

were specially developed for use in mobile machinery in

harsh environments.

The inverse drive with a swivel angle of 22° is very effi-

cient and has a very high power density, making it ideal

for applications that require an adjustable displacement.

The variable flange motors are available in nominal sizes

ranging from 108 to 370. The nominal pressure is 450

bar (NS 370 = 400 bar) and the maximum pressure is 500

bar (NS 370 = 450 bar) absolute.

The optional through-drive can be used for mounting aN

brake or tandem motor.

The DMVA series is available with the most common

controls. Speed sensor or preparation for speed sensor avalable on request.

includes Model:

DMVA 108

DMVA 165

DMVA 215

DMVA 370

Liebherr FMF 045 Hydraulic Motor

Liebherr 512247314 Hydraulic Winch Motor|Liebherr 10226804 Hydraulic Pump

Features:

Series D

Open and closed circuit

Regulator types:

Various regulator types can be selected

Pressure range:

Nominal pressure pHDN = 450 bar (NG 370 = 400 bar)

Max. pressure pHDmax = 500 bar (NG 370 = 450 bar)
